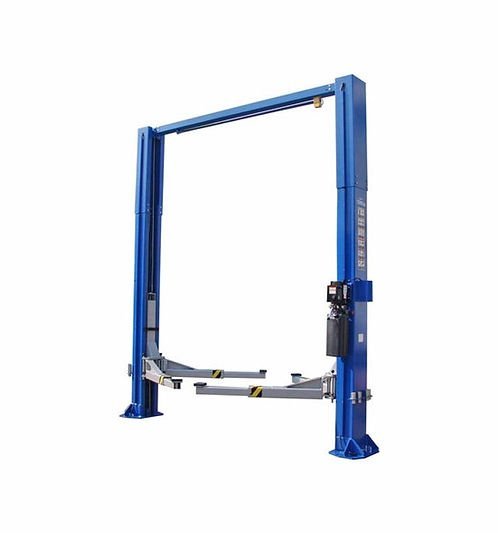

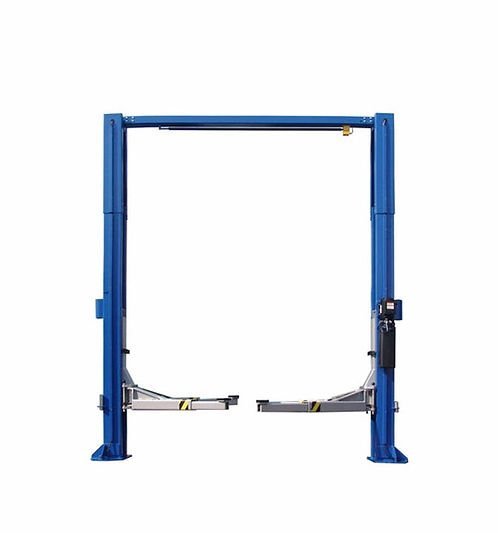

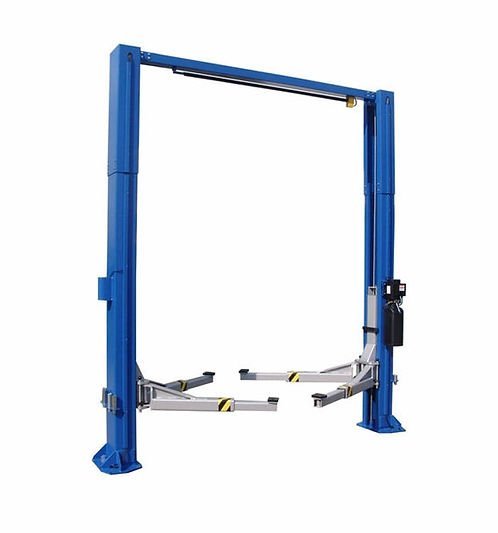

Tuxedo TP12KC-D 12,000 lb Two Post Lift — Direct Drive

Tuxedo Heavy-Duty 12,000 lb 2 Post Lift Big. Strong. Dependable. The fully gusseted oversized base plateson the TP12KC-D and the big lifting arms with reinforcedswivel pin holes, promise years of reliable service. Features 12,000 lbs Capacity Symmetric Arms Rubber Door Guards Direct Drive push Cylinders Single Point pneumatic Lock Release Heavy Duty Arm Restraint System Drop-in Lift Pads Stackable Adapters Included External hose guards Specifications Lift Model TP12KC-D Capacity 12,000 lbs. Height Overall 165″ Width Overall w/ Power Unit 151″ Max Lift Height 72″ Width Between Columns 122″ Min. Pad Height 5.5″ Drive Thru Clearance 109″ Lifting Speed 50S Asymmetric / Symmetric Symmetric Clear Floor / Floor Plate Clear Floor Short Arm Reach min/max 37-5/8″ 56-3/4″ Long Arm Reach min/max Same Narrow Bay Setting NA Max Load Per Arm 3,000 lbs. Ship Weight 2,295 lbs Power 220V 20 AMP 1 PH Manual Tuxedo TP12KC-D 12,000 lb Two Post Lift Manual
