iDEAL TP10KAC-DX 10,000 lb Two Post Clear Floor –Direct Drive

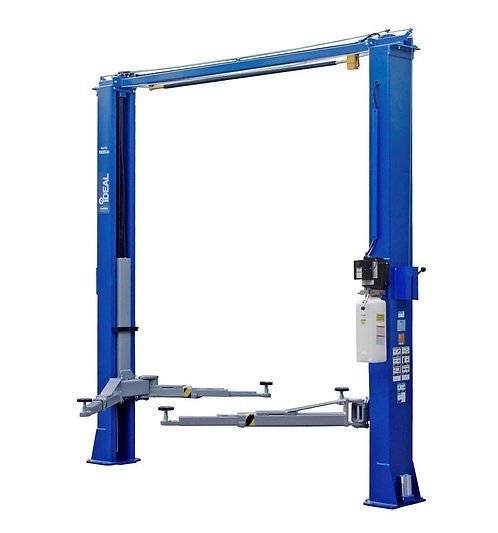

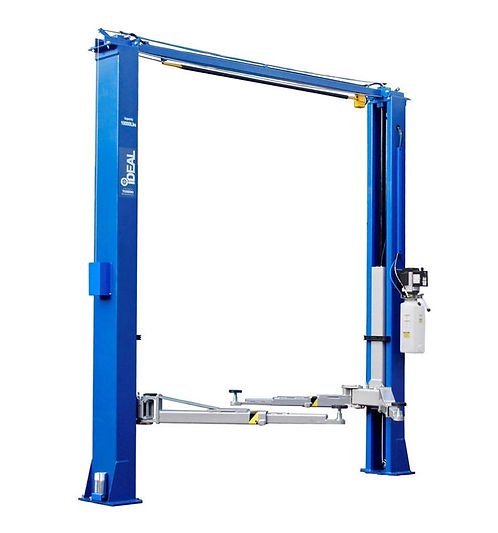

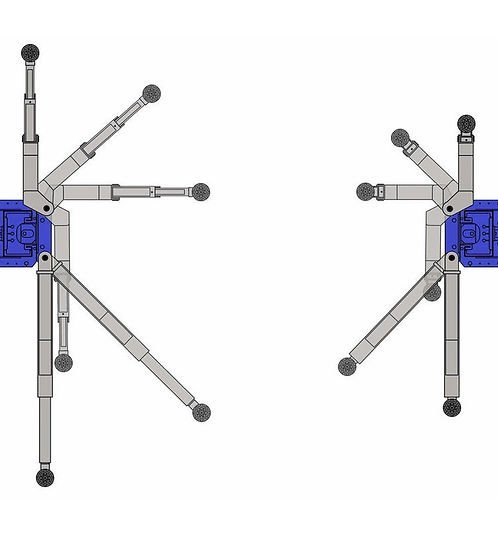

iDEAL TP10KAC-DX ALI Certified 2 Post Lift The iDEAL TP10KAC-DX 10,000 lbs. ALI Certified two post car lift is a premium Bi-Symmetric design clear floor vehicle lift. Offset three stage short arms and a low pad height of 4 make this lift perfect for a wide range of vehicles. Our rigid single piece column and direct pull cylinder combined with single point lock release and clean design make this lift one of our most popular models. Features Bi-Symmetric Arm DesignOffset Three Stage Short ArmLow Profile Lifting ArmsAdjustable Spin Up PadsSingle Point Lock ReleaseRigid Single Piece ColumnDirect Pull Hydraulic CylinderRubber Door GuardsPadded Overhead ShutoffTruck Adapters Included Specifications Capacity 10,000 lbs. Overall Width 137 3/16″ Overall Width w/Power Unit 145 1/2″ Overall Height 144″ Minimum Ceiling Height 12′ Low Pad Height 4″ Max. Lift Height 71″ Max. Lift Height w/Tallest Adapter 76 1/2″ Width Between Columns 116″ Drive Thru Width 104″ Floor to Overhead Shutoff 136″ Arm Reach Front 23″ 45″ Arm Reach Rear 41″ 57″ Maximum Load Per Arm 2,500 lbs Electric Power Unit 220VAC, 20 Amp, 1 Phase Rise Speed 50 Seconds Minimum Concrete 4 1/4″ / 3000PSI Operating Pressure 3,050 PSI Shipping Weight 1,705 lbs. Shipping Dimensions 140″ L X 19″ W X 40″ T Manual iDEAL TP10KAC-DX ALI Certified Two Post Overhead Automotive Lift Manual
